Compiling the software

Note

The codebase for this project is shared with my other IOT devices and is stored in the gravitymon repositiory. This repository only contain a copy of the code for interacting with the pressure sensors and the scripts for building and publishing new versions. If you want to improve the pressure sensor code its fine to create a PR towards this repository.

Tools

I use the following tools in order to build and manage the software:

  • Visual Studio Code

  • PlatformIO

  • Git for Windows

  • Python3 (for building docs)

Code Formatting

I use pre-commit and their cpp style checks to validate the code. Plugin defintions are found in .pre-commit-config.yaml

Pre-Commit

Note

There is not yet any automatic checks since this does not work on Windows. It works if running under WSL2 with Ubuntu or on MacOS.

Targets

In the platformio config there are 3 targets defined

  • pressure32c3-release: Version for ESP32 C3 mini and pico.

  • pressure32s2-release: Version for ESP32 S2 mini.

  • pressure32s3-release: Version for ESP32 S3 mini.

Warning

The debug target can be unstable and crash the device under certain circumstanses. Excessive logging to the serial port can cause corruption and crashes. So only enable enough debugging to troubleshoot your changes.

Serial debugging on battery

The serial output can be written to UART0 which is connected to the RX/TX pins on the chip. This way the serial output can be viewed without a connection to the USB port, convinient when running the device on battery power. In order to get this to work you need to compile the sofware with the option ESPFWK_USE_SERIAL_PINS and attach as USB to TTL cable to the correct pins.

You connect the USB to TTL cable that you connect the TX, RX and GND pins. Dont connect the power pin if you are powering the device from USB or Battery.

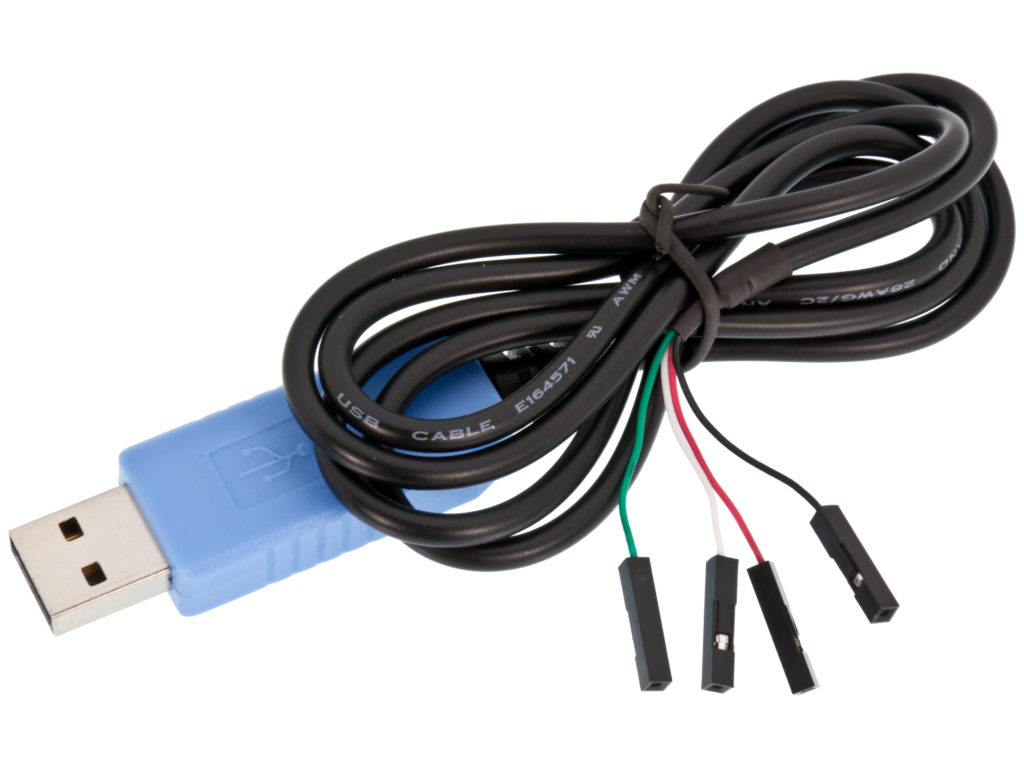

USB to TTL cable

Source structure

Directory structure

path

content

/.github

Automated github action workflows

/bin

Contains compiled binaries

/data

Directory for flashing device filesystem

/doc

Various external documents used as input

/html

Copy of User Interface build

/lib

External libraries used when compiling

/script

Scripts used in build process

/src

Source code for software

/src_docs

Source code for documentation

/test

Unit tests

Options

This is a list of C++ defines that is used to enable/disable functions in the code.

Defines

define

description

USER_SSID

If defined the device will always use this SSID

USER_SSID_PWD

Password to the SSID

LOG_LEVEL

Defines the logging level used 4=INFO, 5=DEBUG, 6=VERBOSE

CFG_APPVER

Defines the version of the compiled software

CFG_GITREV

Contains the last 6 digits of the git revision

ESP32S2, ESP32S3, ESP32C3

These are set to configure the target platform both in pressuremon but also the underlying espframework.
